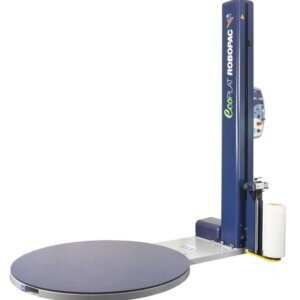

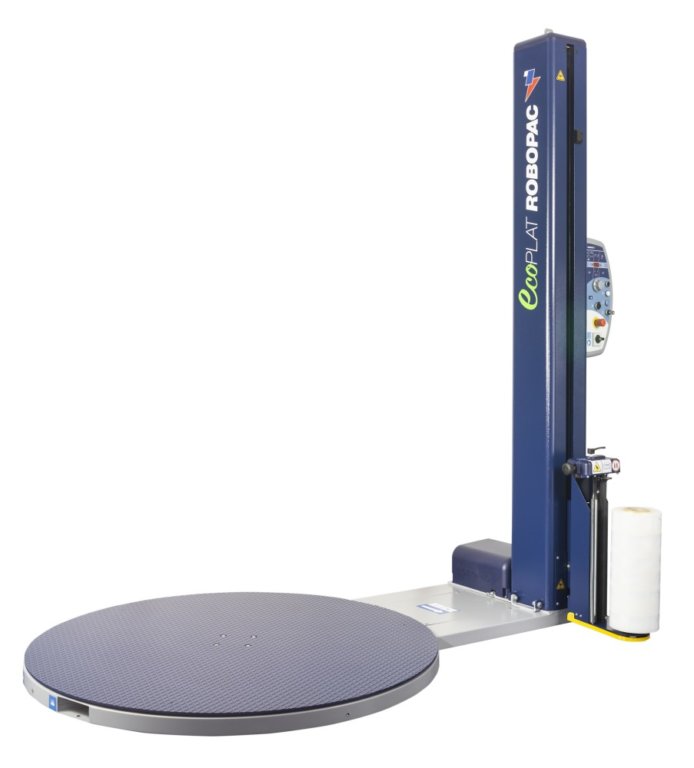

Ecoplat turntable from Robopac

See this equipment in action

Ecoplat turntable from Robopac

IDEAL FOR:

  • Manufacturing plants
  • Standard-dimension pallets
  • Replacing manual wrapping

ADVANTAGES:

  • Easy to use
  • Safe
  • Cost-effective

Evaluation :

  • Non-standard pallets ★★
  • Loading ★★★
  • Mobility ★★★
  • Footprint ★★★★
  • Packaging flexibility ★★★★★

Download PDF

MAIN FEATURES:

  • Touch-screen control panel
  • Mechanical brake-controlled film stretching
  • Load height sensing by photocell
  • Turntable speed of 4 to 10 RPM
  • Pressure-activated safety stop on roll carriage

The Robopac Ecoplat is the simplest, most cost-effective solution for stretch wrapping pallets.

With its innovative control system, this semi-automatic turntable machine is easy to use. The FRD version comes with a button-driven control panel with clear icons for easy configuration. It also boasts a diamond plated steel turntable that prevents loads from shifting during the wrapping process.



The roll carriage on the FRD has a mechanical brake for manual adjustment of film tension. It is also equipped with a tension on/off lever to release the film for attachment to the pallet base without altering the film tension.

The Ecoplat’s high-quality components are designed according to the strictest safety protocols and built to construction standards.

TECHNICAL DATA:

Power supply voltage: 110V
Turntable speed: 4/10 RPM
Turntable diameter: 1650 mm (65″)
Max. load height: 2800 mm (110 ″)
Max. load weight: 2000 kg (FRD)
