Horizontal wrapper Orbit R by ROBOPAC

Get a quote
Availability:
Low stock
Estimated time 10 days
Item
10800301

CARTIER is proud to compensate for all carbon dioxide emissions generated during each trip made by our transportation service.

Open an account or sign in now to access your price and purchase this product online.
Log in or Create my account

The Orbit R series of horizontal stretch film wrappers has been designed to offer flexibility while maintaining high performance for product packaging. The Orbit R can easily be integrated into a workstation or an existing production line. All models feature various speeds and packaging capabilities, allowing productivity gains of up to 25%.

  • Rotation speed: Ranges from 20/180 to 10/80 rotations per minute, depending on the machine.

  • Automatic pressers: Equipped with an automatic settling function to ensure product stability during wrapping.

  • Inner diameter of the attachment ring: Varies from 515 to 1330 mm, depending on the model.

  • Intuitive interface: Touchscreen allowing up to 20 different programs to be saved.

  • Fully automatic: Clamping and film-cutting unit available.

  • Continuous tension system.

  • Film savings: Achieved through the pre-stretch option available across the entire range.

  • Noise and vibration reduction: Ensured by a robust support frame.



Available models :
ORBIT R 5: 125 single and 250 single and double reel with a diameter of 515 mm.
ORBIT R 9: 125 single and 250 single and double reel with a diameter of 920 mm.
ORBIT R 13: 250 single and double reel with a diameter of 1330 mm.



* Preparation and installation fees not included.
* Photos used for illustrative purposes only.

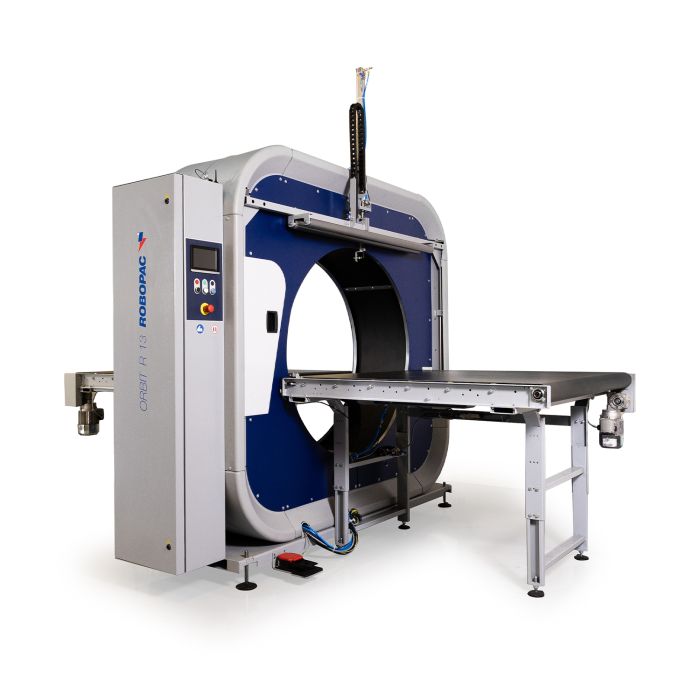

main product photo

Power supply voltage

400v/3Ph + N

Max. rotation speed

180 RPM

Ring diameter

520 mm

Reel width W

120/550 mm

Power supply frequency

50 Hz

Installed power

1,6 kW
