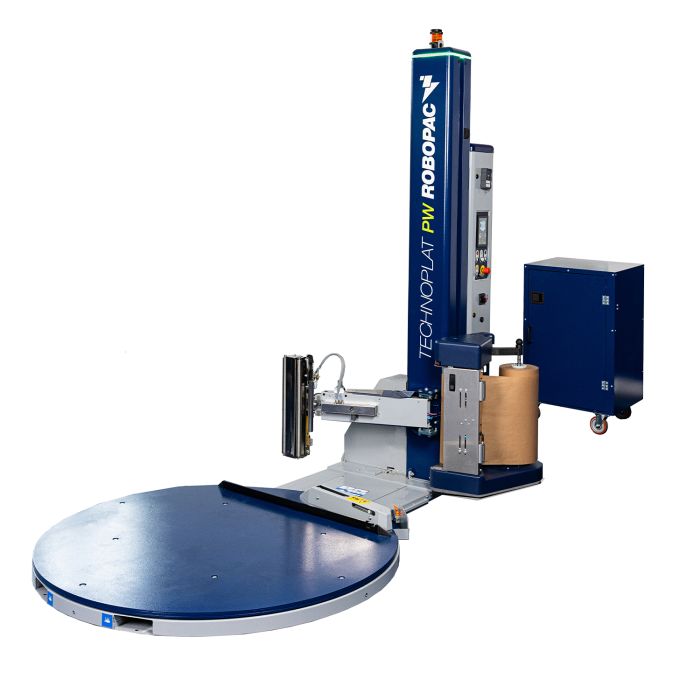

The Robopac Technoplat PW is equipped with a rotating table for pallet wrapping and uses paper instead of film. This is an innovative and unconventional way to reduce plastic consumption and wrap your pallets in a more eco-friendly manner. Regarding the safety of your goods, it is crucial to validate the stability of the load and perform pre-testing of the packaging.

  • Cube Technology: Reduces Stretch Film Consumption by 30% to 55%

  • Production Capacity: Up to 30 pallets per hour

  • Table Rotation Speed: 5/12 RPM

  • Automatic Finishing: Automatic paper clamp and cutting system

  • Automatic Adhesive Application: Water-based adhesive applied by a device, ensuring the recyclability of the paper is unaffected

  • Tilting Cart: Reduces paper creasing

  • Adjustable Tension: Paper tension adjustable via the touch screen control panel

  • Enhanced Safety: Thanks to the multi-sensor conveyor that stops the cycle when an operator is detected








*Preparation and installation fees not included
* Photos used for illustrative purposes only.

Production speed

Up to 30 palettes/h

Turntable diameter

1650 mm std - 1800 mm opt / 65 in std - 71 in opt

Turntable rotation speed

5÷12 (Ø1650 / 65) - 5÷11 (Ø 1800 / 71) rpm

Max load weight

2000kg std / 2500kg  opt / 4409lb  std / 5512lb opt

Paper tension

Réglage depuis tableau de commande

Maximum pallet dimension

(LxW) 1000x1200 std - 1200 x 1200 opt / 40 x 48 std - 48 x 48 opt

Minimum pallet dimensions

(LxW) 600 x 800 mm / 24 x 32 in

Base height from ground

92,5 mm / 3,6 in

Power Supply

230 V 1Ph± 10% 50/60 Hz
