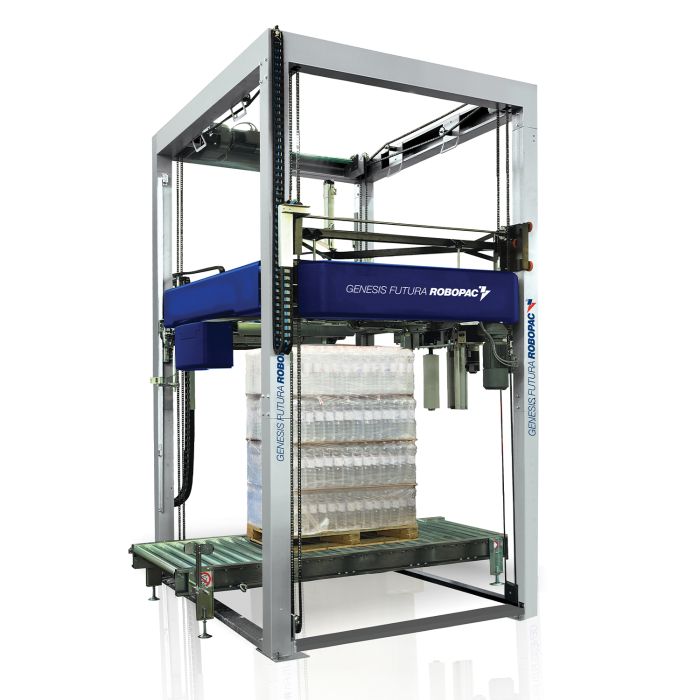

Genesis Futura 40 Rotary Ring by ROBOPAC / SISTEMI

Get a quote
Availability:
Low stock
Estimated time 150 days
Item
Genesis Futura 40

CARTIER is proud to compensate for all carbon dioxide emissions generated during each trip made by our transportation service.

Open an account or sign in now to access your price and purchase this product online.

The Genesis Futura rotary ring has been designed for easy integration into an existing packaging line thanks to its compact and space-saving design. Its high performance lies in its ability to continuously adjust pre-stretch on the load throughout the wrapping process. Multiple pre-stretch values can be set without any interruption to the wrapping cycle.

  • Production capacity: up to 95 pallets per hour (under certain conditions)

  • Cube Technology: reduces stretch film consumption by 30% to 55%

  • Variable pre-stretch: preset film stretching from 150% to 400%

  • Patented single-motor carriage: enables continuous and precise pre-stretch adjustment from 140% to 300%

  • Optimal finishing: thanks to the cutting, clamping, and welding system for the film edge

  • High speed: achieved through the rotating ring assembly, designed to operate at extremely high speeds

  • Intuitive interface and customizable programming: touchscreen allowing up to 15 recipes to be configured

  • Secure: advanced safety features

* Preparation and installation fees not included.
* Photos used for illustrative purposes only.

Power supply voltage

380 – 400 – 415 ± 5%

Output capacity

95 pallets/h*

Min. load dimensions

500×600 mm (20” x 24”)

Max. load dimensions

1100×1300 mm (43” x 51”)

Max. load height

2000 mm (79”)
