Switch HP-SWA A-Arm Automatic Stretch Film Wrapper by COUSINS

Get a quote
Availability:
Low stock
Estimated time 80 days
Item
Switch HP-SWA

CARTIER is proud to compensate for all carbon dioxide emissions generated during each trip made by our transportation service.

Open an account or sign in now to access your price and purchase this product online.

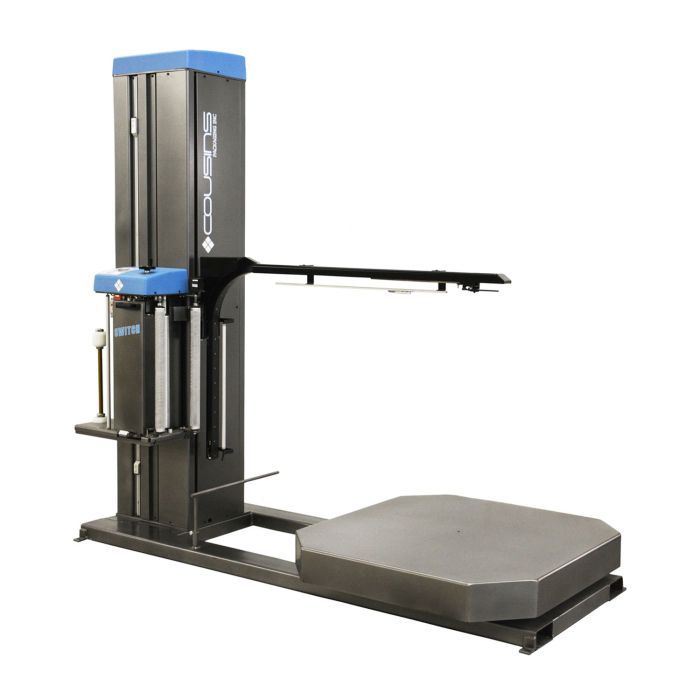

The Switch HP-SWA Stretch Wrapper is a fully automatic solution that allows you to wrap pallets without the operator having to leave the forklift. Thanks to its wireless remote control and exclusive A-Arm system, it reduces labor costs and enhances safety while optimizing plastic consumption.

  • Variable Pre-Stretch: Preset film stretch from 33% to 313%

  • Production Capacity: Up to 35 pallets per hour

  • Full Automation: Attaches and cuts film without manual intervention

  • Remote Start: Wireless control directly from the forklift

  • A-Arm Technology: Provides rapid load stabilization from the beginning of the cycle

  • Intuitive Interface: Customizable programming with 3 recordable modes

  • 100% Electric Operation: No pneumatic power required

  • Rotation Speed: Up to 12 rotations per minute

  • Robust Rotating Table: Steel chassis and octagonal rotating table measuring 48", suitable for pallets with a minimum height of 30 inches

  • Enhanced Safety: Automatic detection of height and loads

  • Reduced Maintenance: Design without a collector ring or ground clamp

* Preparation and installation fees not included.
* Photos used for illustrative purposes only.

Power supply

115 Volts 1 Phase 60 Hz 15 Amps with dedicated service

Maximum weight

4500 lb (Dynamic)– 10 000 lb (static)

Maximum load dimensions

1701,8 mm (67”) La x 1701,8 mm (67”) L x 2032 mm (75”) H

Minimum pallet height

762 mm (30”)

Turntable speed

3 -12 RPM

Turntable diameter

1219,2 mm (48”) octogonal shape

Capacity

35 pallets per hour

Pre-stretch capacity

33 – 313%

Equipment length

2654,3 mm (104,5”)

Equipment width

1193,8 mm (48”)

Equipment height

2528,82 mm (99,56”)
